Dolphicam2在复合材料超声波探伤中的性能评估
仪器购买:135-0542-5410
检测服务:186-5324-2346

青岛纵横仪器有限公司：Dolphicam2在复合材料超声波探伤中的性能评估
Qingdao Zongheng Instruments Co., Ltd.: Performance Evaluation of Dolphicam2 in Ultrasonic Testing for Composite Materials
青岛纵横仪器有限公司，作为专业的无损检测设备提供商，对Dolphicam2在复合材料超声波探伤领域的性能进行了深入的技术分析。Dolphicam2，由Dolphitech公司研发的超声波成像系统，代表了数字超声成像与数据采集技术的最新进展。以下是对Dolphicam2性能的专业解读：
核心技术特点
Core Technical Features
Dolphicam2采用了二维矩阵阵列架构，生产出具有16,384个元件和32x32mm有效孔径的换能器模块（TRM）。这种设计提供了高数据捕获和分辨率，结合0.7MHz到10MHz的频率范围，使其能够检查各种材料，包括碳纤维（CFRP）、玻璃纤维（GFRP）、玻璃钢（GLARE）、塑料、橡胶、陶瓷和金属等。
Dolphicam2 employs a two-dimensional matrix array architecture, resulting in a transducer module (TRM) with 16,384 elements and an effective aperture of 32x32mm. This design offers high data capture and resolution, combined with a frequency range of 0.7MHz to 10MHz, enabling the inspection of a variety of materials including carbon fiber reinforced plastic (CFRP), glass fiber reinforced plastic (GFRP), glass laminate aluminum reinforced epoxy (GLARE), plastics, rubber, ceramics, and metals.
扩展内容
The matrix array technology in Dolphicam2 allows for a high degree of focusing and steering of the ultrasonic beams, which is crucial for the detection of small and deeply buried defects in composite materials. The large number of elements in the TRM enables the system to achieve a high spatial resolution, which is essential for accurate flaw sizing and positioning. The variable frequency range allows for adaptability in inspecting materials of varying thickness and acoustic properties.
硬件特性
Hardware Specifications

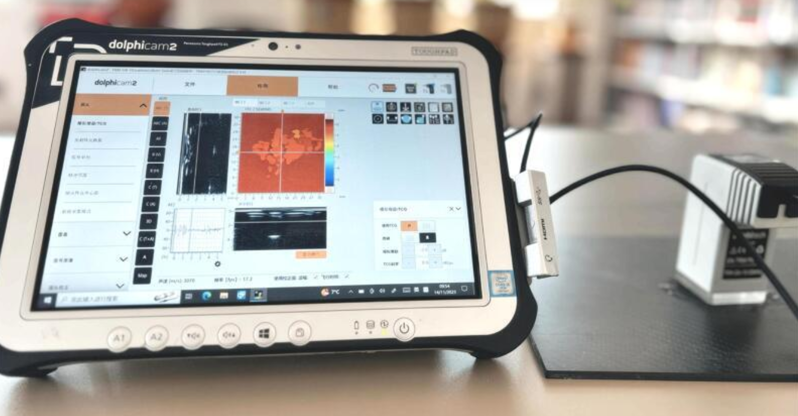

Dolphicam2的硬件设计考虑了现场使用的便捷性和耐用性。它包括一个定制的Pellicase，带有选定的TRM(s)、一个连接的Black Box和一个Panasonic Toughpad。TRM不仅包括传感器本身，还包括模数转换（ADC）电子设备，这意味着它可以通过一根简单的USB-C电缆连接到Black Box，不再需要笨重的多针电缆和插头。
The hardware design of Dolphicam2 is tailored for field use, emphasizing convenience and durability. It includes a custom Pellicase with the selected TRM(s), a connected Black Box, and a Panasonic Toughpad. The TRM encompasses not only the sensor itself but also the analog-to-digital conversion (ADC) electronics, which means it can be connected to the Black Box via a single USB-C cable, eliminating the need for bulky multi-pin cables and connectors.
扩展内容
The Pellicase provides a rugged and protective housing for the TRM, ensuring that the sensitive equipment is safeguarded against harsh environmental conditions often encountered in industrial settings. The Black Box serves as the central processing unit, where data from the TRM is processed and where the software interface is accessed. The Panasonic Toughpad, with its high-performance specifications, allows for seamless operation of the Dolphicam2 software, even in challenging environments.
软件特点
Software Features
Dolphicam2的软件设计在NDT软件包中处于地位，它从头开始设计以补充平台的成像功能。超声图像不仅使用传统的信号振幅显示，而且还作为飞行时间显示，打开了即时、颜色编码的厚度映射的世界。实时3D视图进一步帮助了这一点，它可以立即增强可视化效果，并且非专业人员也可以轻松解读。
The software design of Dolphicam2 is at the forefront of NDT software packages, designed from the ground up to complement the platform's imaging capabilities. Ultrasonic images are displayed not only in traditional signal amplitude but also as a flight time display, opening up a world of immediate, color-coded thickness mapping. The real-time 3D view further aids in this, enhancing visualization instantly and making it easily interpretable by non-specialists.
扩展内容
The software's advanced algorithms allow for the automatic detection and classification of defects, reducing the potential for human error and speeding up the inspection process. The color-coded thickness mapping provides a quick and intuitive way to assess the material's homogeneity and to identify areas with thickness variations that may indicate manufacturing defects or material degradation. The real-time 3D visualization is particularly useful for complex geometries, where a standard 2D view might not provide sufficient information for accurate analysis.
应用场景
Application Scenarios
Dolphicam2在复合材料的超声波探伤中表现出色，尤其适用于检测复合材料构件中的分层、孔隙、裂纹和夹杂物等。它在判断材料的疏密、密度、纤维取向、曲屈、弹性模量、厚度等特性和几何形状等方面的变化也有一定作用。
Dolphicam2 excels in ultrasonic testing of composite materials, particularly for the detection of delaminations, porosity, cracks, and inclusions within composite components. It also plays a role in assessing changes in material characteristics such as density, fiber orientation, curvature, modulus of elasticity, thickness, and geometric shape.
扩展内容
In the aerospace industry, Dolphicam2 is instrumental in inspecting the integrity of composite aircraft structures, such as wings and fuselages, where the detection of even the smallest defects is critical for safety. In the automotive sector, it is used to ensure the quality of composite parts used in high-performance vehicles. Additionally, in the wind energy sector, Dolphicam2 is applied to assess the condition of composite wind turbine blades, which are subject to harsh environmental conditions and require regular inspection to prevent failures.
性能总结
Performance Summary
Dolphicam2以其高分辨率成像、精确测量和易于操作的软件界面，在复合材料超声波探伤中提供了卓越的性能。它不仅提高了检测的准确性，还简化了操作流程，使得技术人员能够快速、有效地进行复合材料的无损检测。青岛纵横仪器有限公司通过提供Dolphicam2等先进设备，致力于帮助客户提升产品品质，创造最大的效益。
Dolphicam2 offers outstanding performance in ultrasonic testing of composite materials, thanks to its high-resolution imaging, precise measurement, and user-friendly software interface. It not only enhances the accuracy of inspections but also streamlines the operational process, allowing technical personnel to conduct non-destructive testing of composites quickly and effectively. Qingdao Zongheng Instruments Co., Ltd. is committed to helping customers improve product quality and maximize benefits by providing advanced equipment like Dolphicam2.
扩展内容
The performance of Dolphicam2 is further enhanced by its ability to integrate with other inspection systems and to be customized for specific application needs. The system's modular design allows for easy upgrades and maintenance, ensuring that the technology remains at the cutting edge. The support and training provided by Qingdao Zongheng Instruments Co., Ltd. ensure that customers can fully utilize the capabilities of Dolphicam2 to achieve their quality assurance goals.
